Trap Cartridge

RJ: "Alright, team, let's dive into this mountain of metal. We're breaking down the ghost trap cartridge, part by part, and giving you the inside scoop on each component."

Pandora: "We'll be examining every piece, discussing any last-minute design tweaks, and ensuring everything is perfect for production."

Glitch: (Drops a screw with a loud clatter) "Ooh! Can we make it shoot flames? And ice? And maybe those sticky webs like Spiderman?"

RJ: (Gives Glitch a weary look) "Glitch, please. Just... please. Now, as I was saying, we're also going to be talking about the cost of each part. High-quality ghost-trapping tech doesn't come cheap."

Glitch: (Picks up a screw and examines it with a mischievous grin) "Ooh! Can we make it out of solid gold? That would be super expensive!"

RJ: (Rubs his temples) "Let's just get started, shall we?"

Economy vs Premium parts

Third Time's the Charm:

Okay, folks, let's talk money. Now, I know what you're thinking: 'RJ, is this going to cost me an arm and a leg, or maybe even a kidney?' Well, fear not, my budget-conscious buddies, because we've got options. Think of it as choosing your difficulty setting, like in a video game. Except instead of battling pixelated monsters, you're facing off against your own budget."

The 'Economy' option, for the hardcore makers, the folks who love a good challenge. It's easier on the wallet, but it also requires some elbow grease. You'll need to thread holes, countersink holes, file, sand... sometimes even drill a hole.

Now, here's the catch: there's always a chance you might mess up. Slip of the hand, wrong measurement, sudden urge to use the drill as a makeshift lightsaber... it happens. And if that happens, you might need to order another part. That's the gamble, my friends. High risk, high reward. But for those master builders out there, the savings are HUGE! (ok not for the trap cartridge not a huge savings there)

Now, if you're more of a 'plug and play' type, we've got the 'Premium' option. This bad boy is ready for assembly, straight out of the box. No extra work required, just bolt it on and go. Of course, you'll pay a bit more for the convenience, but hey, time is money, right?"

So, whether you're a budget-conscious builder or a time-crunched tinkerer, we've got an option for you. Just choose wisely, my friends. And remember, no matter which path you choose, you're still building something awesome.

The Parts:

The "Notes" field? Ah, that's where I confess my sins, admit my design flaws, and basically tell you what I screwed up. (Just kidding... mostly.) But seriously, folks, if there are any changes to be made to the part in the final production, you'll find them listed there. If not, it's "Production Ready"! Time to unleash the geekiness!

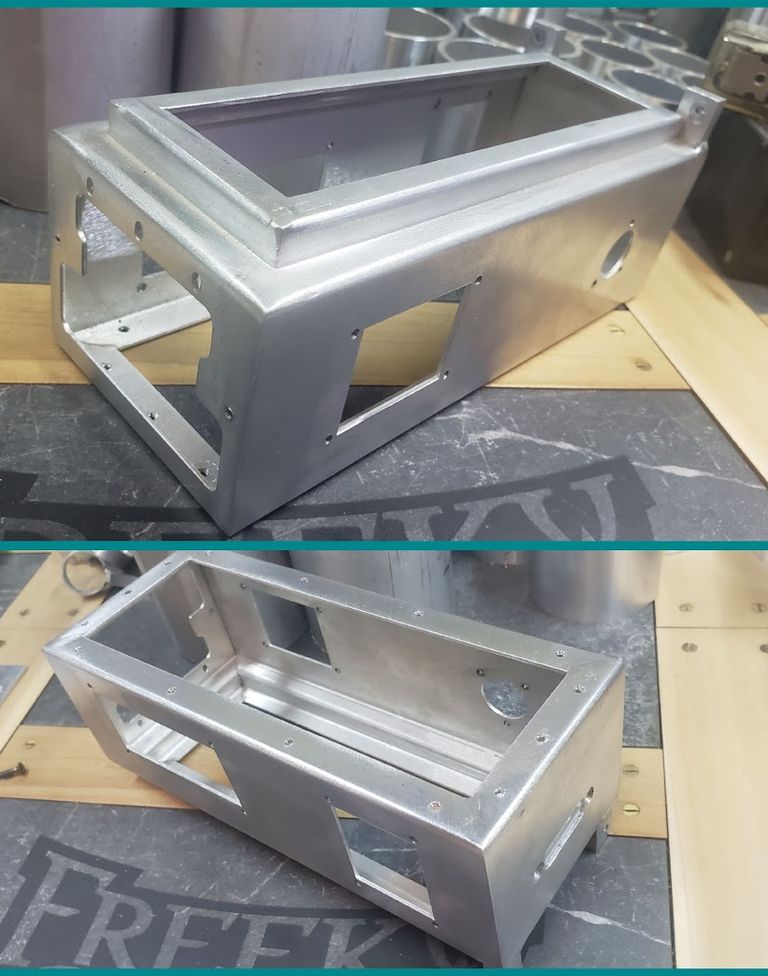

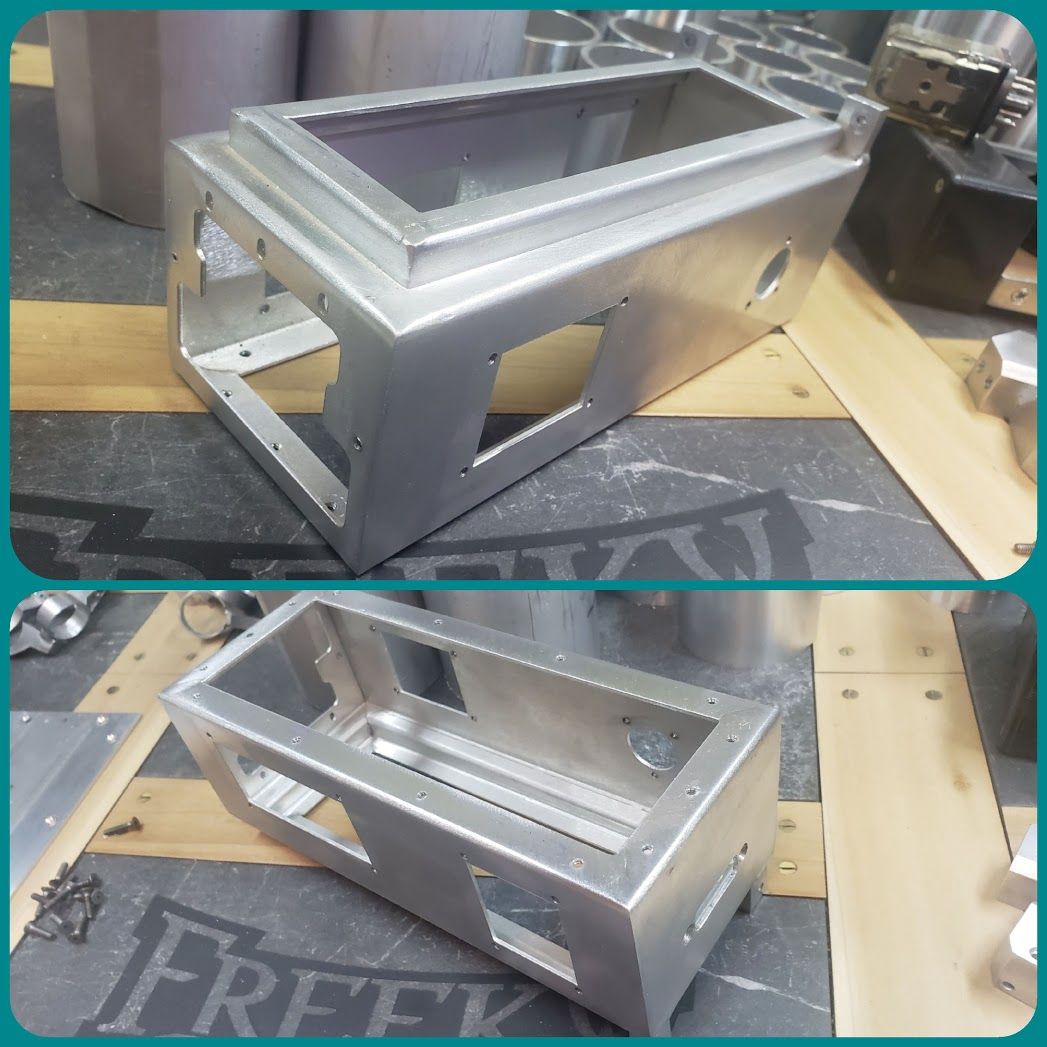

Cartridge Shell

This ghost trap cartridge shell embodies precision and durability. Laser-cut panels are expertly TIG welded for strength, then meticulously ground for a flawless finish. Every hole is precisely tapped, guaranteeing a seamless assembly experience. This is the core of your ghost trap Cartridge

Notes:
pin connector cutout size adjustment needed

Economy = $312.62
Premium = $352.62

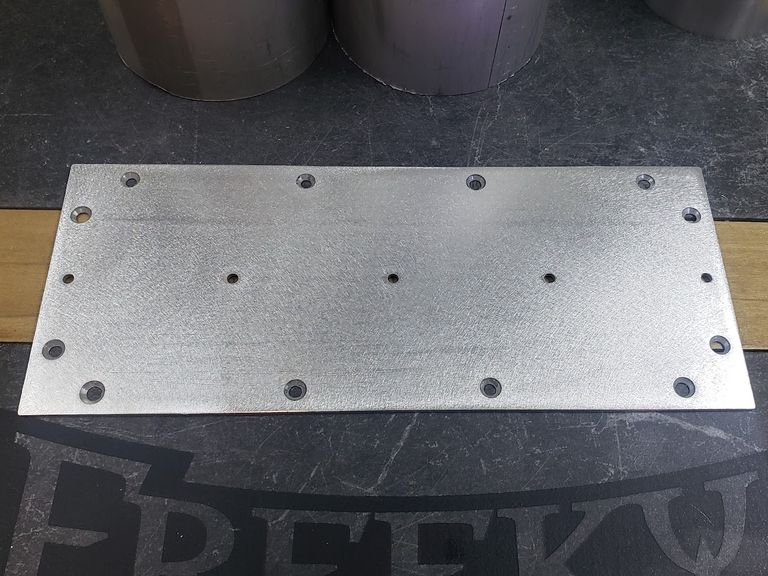

Cartridge Base

Laser-cut for precision, this base provides a solid foundation for the cartridge assembly. We meticulously countersink the outer 12 holes and thread the 3 inner center holes, ensuring a flush fit for all screws and secure connections for all your components.

Includes: 12, #04-40 x 1/4" Flat Head Socket Cap screws.

Notes:
3 center holes to be changed to threaded

Economy = $23.66
Premium = $47.66

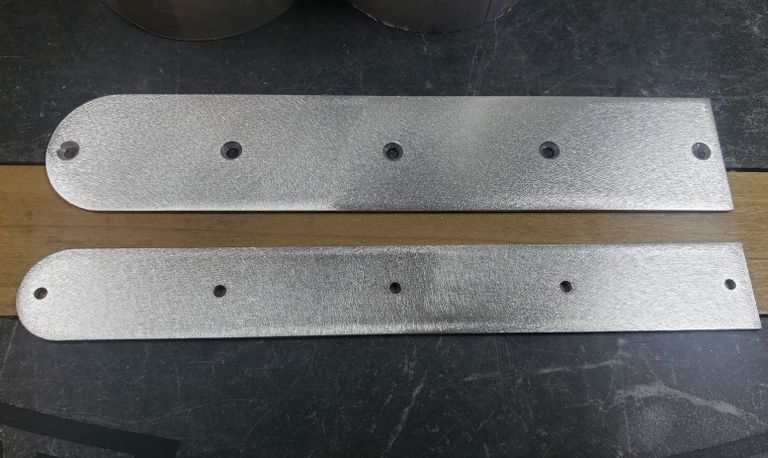

Guide Track

These guide tracks ensure smooth operation and precise alignment. This set includes both the bottom guide and spacer, laser-cut for accuracy. The bottom plate is countersunk for flush-fitting screws.

Includes: 4, #04-40 x 5/16" Flat Head Socket Cap screws.

Notes:
Production Ready

Economy = $18.4
Premium = $26.4

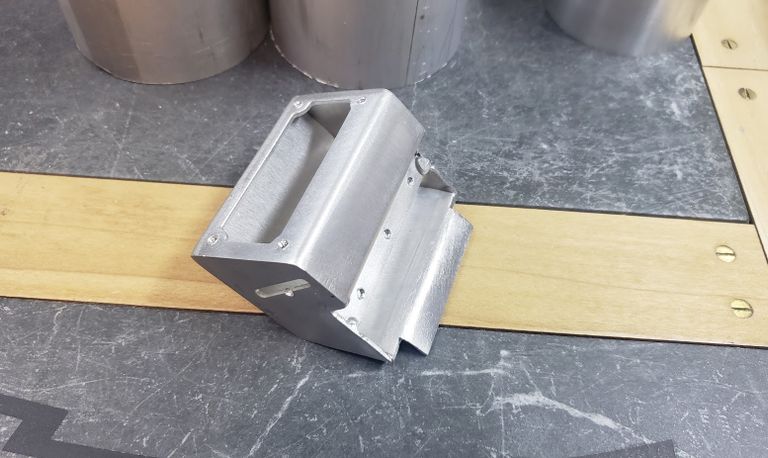

Read Out Display

Precision laser-cut panels are meticulously TIG welded to form a sturdy enclosure for the display. We grind each seam smooth, ensuring a flawless finish that's as visually appealing as it is functional. Tapped holes guarantee effortless assembly.

Includes: 3 #4-40 socket cap screws.

Notes:
Side ear slots need lowered.

Economy = $131.17
Premium = $137.17

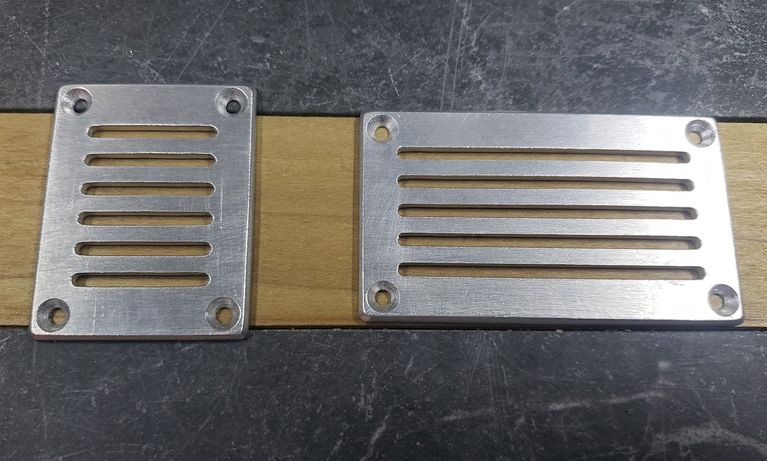

Right Wall Vents

Laser-cut for precision , these plates add both functionality and visual appeal to your ghost trap. We countersink each hole, ensuring a flush fit for all screws and a clean, professional look.

Includes: 8, #4-40 x 1/4" Flat Head Socket Cap screws.

Notes:
Production ready

Economy = $32.85
Premium = $48.85

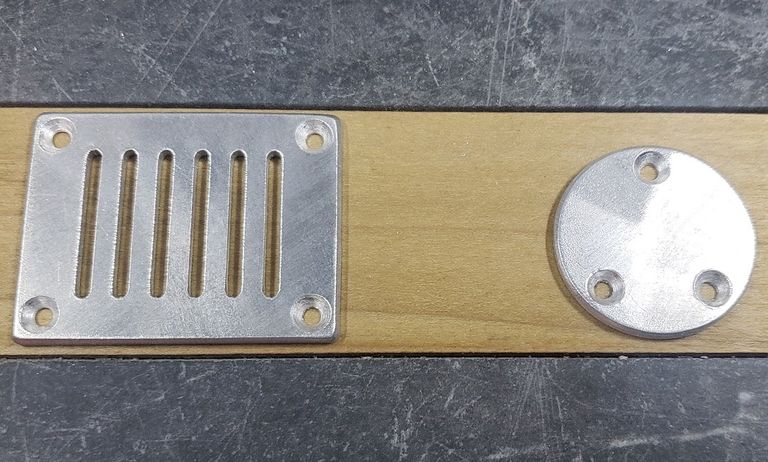

Left Wall Vents

Front Cover

Laser-cut for precision, it's ready to be mounted and admired.

Includes: 2, #4-40 x 1/4" Button Head Socket Cap screws or 2, #4-40 x 1/4" Socket Head Cap screws.

Notes:
Knob Holes needed

Premium = $9.40

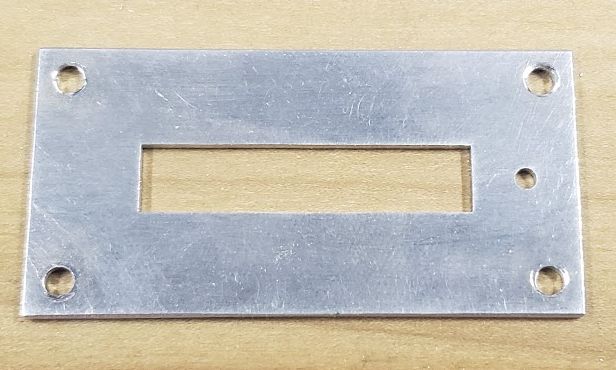

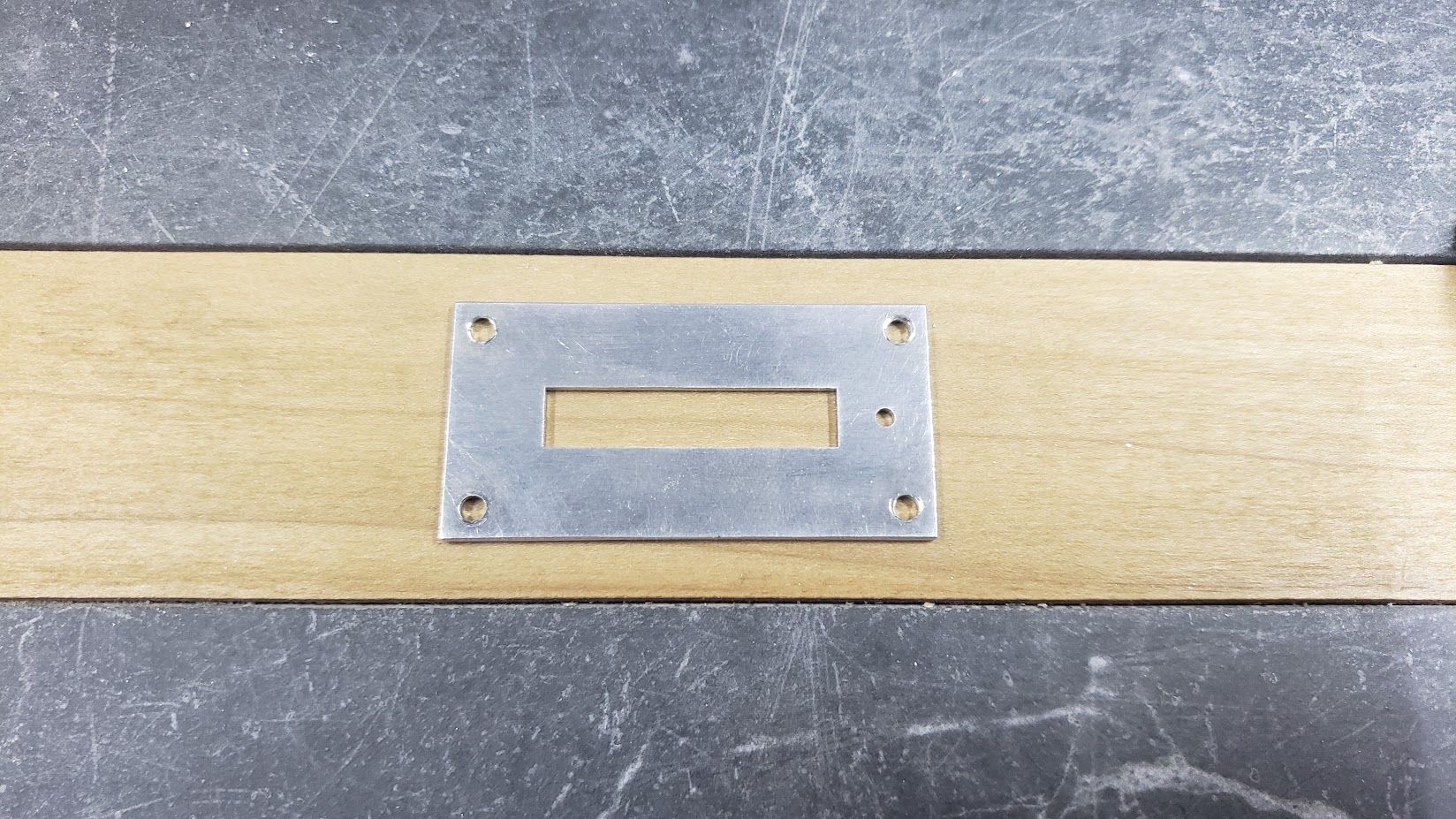

Read Out Cover

Laser-cut for precision, it's ready to be mounted and admired.

Includes: 4, #4-40 x 1/4" Button Head Socket Cap screws or 4, #4-40 x 1/4" Socket Head Cap screws.

Notes:
Production ready

Premium = $10.44

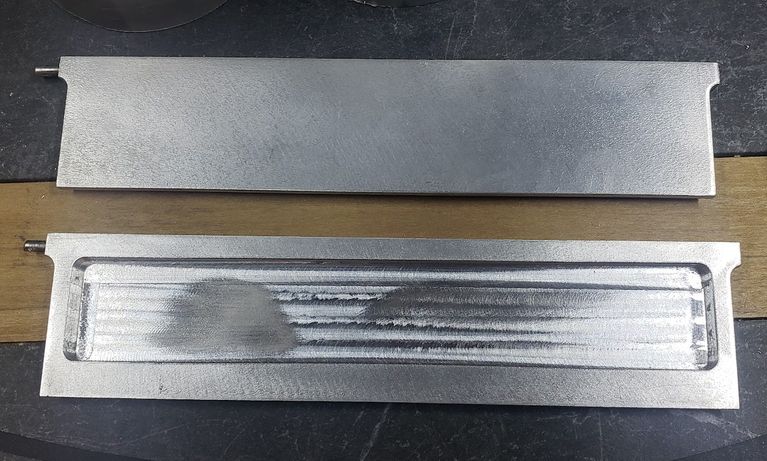

Trap Doors

Laser-cut with precision and CNC milled back, it features an interlocking ledge for a secure closure.

Includes: 2, #4-40 x 1/2" Socket Head Cap screws.

Notes:
Needs holes for motor arm mounts

Economy = $79.68
Premium = $95.68

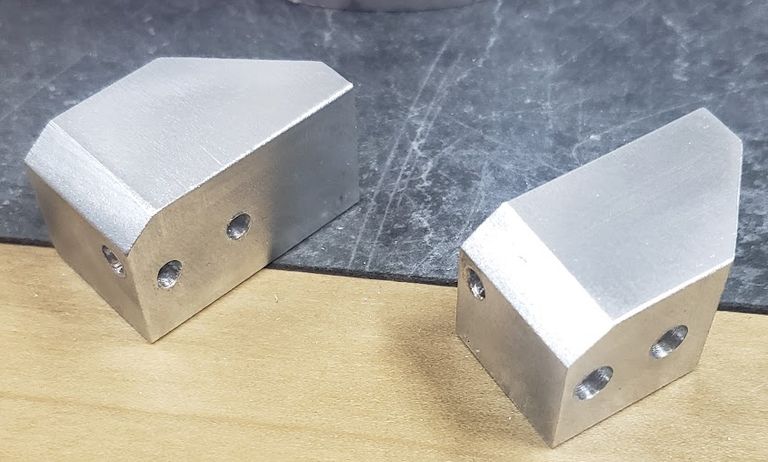

Trap Doors Ears

CNC cut with precision, drilled for accurate assembly, and countersunk for a flush finish, these ears provide the crucial pivot points for that iconic trap door swing. They're small, but mighty.

Includes: 4, #4-40 x 7/8 Socket Head Cap screws

Notes:
Needs inner mount plate

Economy = $58.00
Premium = $66.00

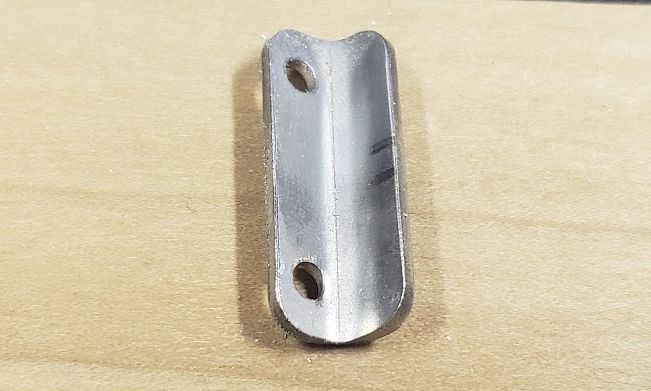

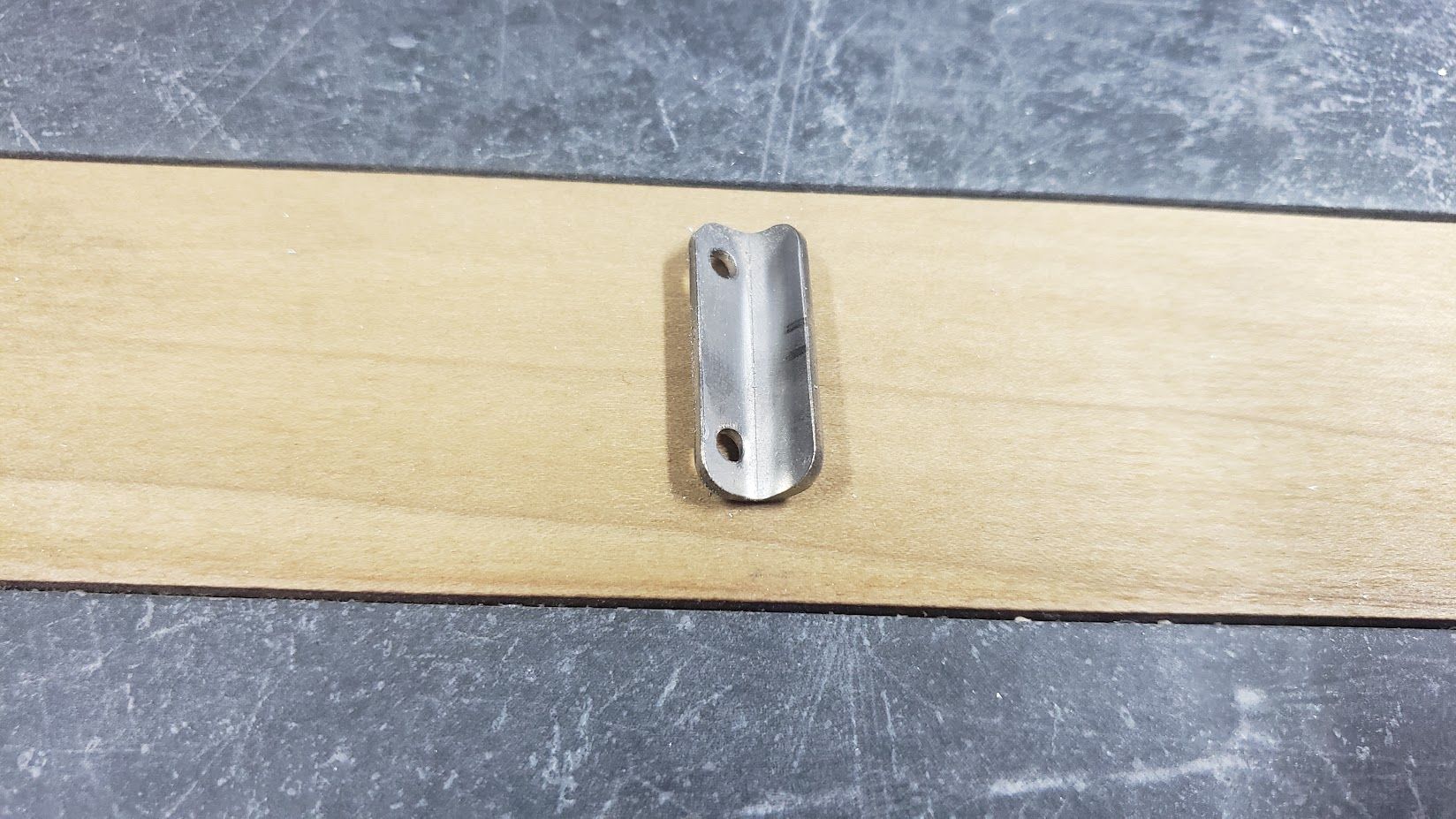

Cartridge catch

Laser-cut with precision and bent to the perfect angle, it ensures the perfect lock every time.

Includes: 2, #4-40 x 1/4" Socket Head Cap screws.

Notes:
Production Ready

Premium = $7.54

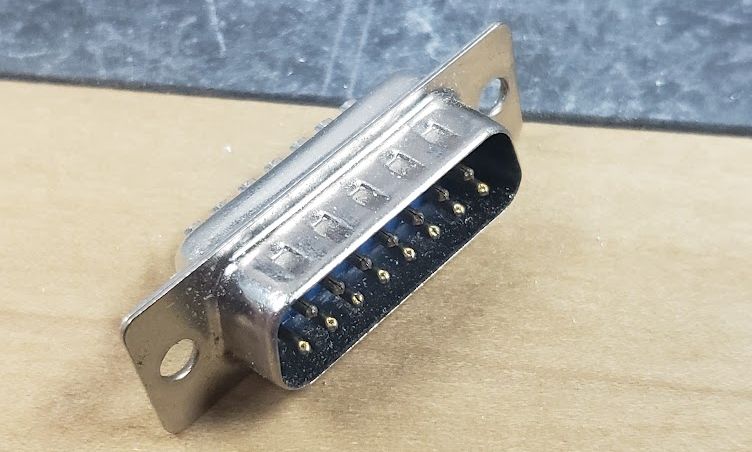

Pin Connector

Spacers Laser-cut to precision and Pin connector
+ 15 Pin Connector

Includes: 2, #4-40 x 5/16" Flat Head Socket Cap screws

Notes:
needs spacer

Premium = $13.1

The Final Break down

Alright, time for the final tally. We've dissected this ghost trap cartridge piece by piece, and now it's time to add up the damage.

Economy Kit Total: $719.16

Premium Kit Total: $853.16

Now once again, those are just the ballpark figures, mind you. The final price will depend on which parts you choose and how confident you're feeling. Mix and match to your heart's content, and create a ghost trap that's as unique as you are. We've tried to make these parts as accessible to everyone as possible, so whether you're a master builder who's confident they can handle the extra workload or you'd rather spend your time chasing ghosts than chasing tolerances, we've got you covered

The Never-Ending Disclaimer (Because We're Thorough Like That)

Now, before you go strapping this bad boy to your belt and chasing ghosts down the street, let's get a few things straight. These traps are high-end collectibles, meant more for display than bustin' makes 'em. I mean, look at the price tag! But hey, I get it. Some of you just can't resist the urge to unleash your inner Ghostbuster. So, I designed this thing with that in mind.

From the safety release screw to prevent accidental cartridge ejection to the replaceable parts, this trap is built for action. But remember, folks, this thing is heavy and made of aluminum. If it takes a tumble, it's gonna get dinged up. That's why I made sure every part can be unscrewed and replaced. So, no need to freak out if you drop it. Just order a new part, bolt it on, and you're back in business. No need to buy a whole new trap. Unless, of course, you want to. I'm not judging.

(Winks)

Just remember, folks, this is a ghost trap, not a battering ram. Try to avoid using it as a weapon, a doorstop, or a makeshift hammer. Unless, of course, you're facing off against a particularly stubborn poltergeist. In which case, go nuts. But don't come crying to me when you need a new handle assembly.

(Clears throat)

And one more thing: Freeky Geeky is not responsible for any spectral infestations, poltergeist possessions, or ectoplasmic explosions resulting from the use of this ghost trap. Build and operate at your own risk.

(Gives a sly grin)

Now go forth and trap some ghosts! (Or, you know, just admire it on your shelf. That's cool too.)
